Zetek

TESTER AND MULTIMETERS > C3

C3

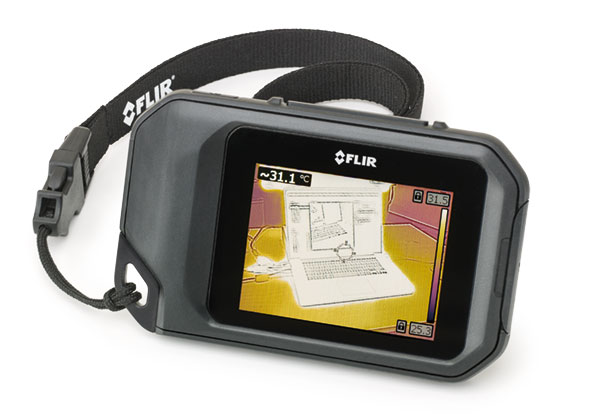

ULTRA COMPACT THERMAL WI-FI CAMERA - FLIR

  • MSX images System optimizatio
  • Transfer images using the Flir Tool Mobile app (Android, iOS)
  • Display of maximum and minimum temperature points by Hot Spot - Cold Spot function
  • LCD touch screen
  • WiFi and USB 2.0 connection
  • Rechargeable lithium-ion battery
TECHNICAL DATA

Specifications

IR Sensor 80 x 60 (4800 pixel)
Thermal sensivity <0.10°C
Field of view 41° x 31°
Minimum focus distance Thermal: 0.15 m
MSX: 1m
Focus Free focus
Image frequency 9Hz
Spectral range 7.5 - 14.0µm
Digital camera 640 x 480 pixel

Image presentation

Image modes Thermal, visual, MSX,
Picture in picture
Image gallery Yes
MSX Adds visual details to full resolution thermal image
Color palettes Iron, Rainbow, Rainbow HC, Gray
Minimum focus distance Thermal: 0.15 m
MSX: 1m
Auto orientation Yes
Touch screen Yes, capacitive

Measurement and analisys

Temperature range 14° + 302° F
Accuracy 3.6° F o 2%,  whichever is greater
Spotmeter On/off
Emissivity correction Yes; matte/semi-matte semi-glossy + custom value
Measurement correction Emissivity, Reflected apparent temperature

Storage and streaming

Storage media Internal memory, at least 500 sets of images
Image file format Standard JPEG with 14-bit measurement data included
Non radiometric IR Yes
Visual video streaming Yes

Addotional information

Battery type Rechargeable Li-ion
Battery operation time 2 hours
Charging time 1.5hours
Operating temperature range 14 ° to 122° F
Storage temperature range -40° to 158° F
Weight 0.13 kg
Dimesions 125mm x 80mm x 24mm
Communication interfaces Wi-Fi, USB
